产品类型：超小型船形开关

规格参数
功率: Dependent upon contact material.
机械寿命: 30,000 make – and – break cycles.
接触电阻: 20MΩmax .initial @ 2-4VDC 100mA for both silver and gold plated contacts.
绝缘电阻: 1,000MΩ min.
绝缘强度: 1,000V RMS min@sea level.
工作温度: -30℃ to 85℃.


使用材质
外壳: Diallyl phthalate (DAP) (UL94V-0).
翘板: Nylon, black std.
铜头: Brass or zinc, nickel plated.
框架: Stainless steel.
支撑支架: Brass , tin plated.
端子/弹片: Brass ,with Silver or gold

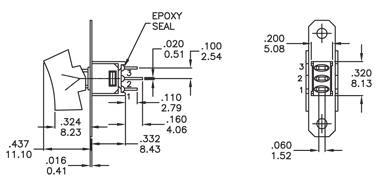

4M基本尺寸



船形开关-4M Series
