产品分类：超小型防水船形开关

规格参数
额定值: 120VAC 3A/250VAC 1A
功率：Dependent upon contact material
机械寿命: 30,000 make – and – break cycles.
接触电阻: 20Ωmax .initial @ 2-4VDC 100mA for both silver and gold plated contacts.
绝缘电阻抗: 1,000MΩ min.
绝缘强度: 1,000V RMS min@sea level.
工作温度范围: -30℃ to 85℃.

使用材质
外壳&铜头: Glass filled nylon 6/6, flame retardant,heat stabilized (UL94V-0).
翘板: Nylon, black std.Internal O-ring seal standard with all actuators.
支撑支架: Brass or steel, tin plated.
端子/弹片: Silver or gold plated copper alloy

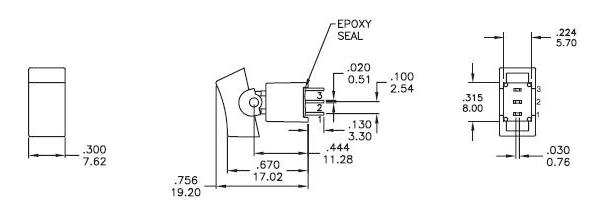

4A 基本尺寸




防水船形开关-4A Series
